Watch detection happen live: the Detection Observatory

Diátaxis quadrant: How-to. Audience: Red/Blue developers who want to see the detection engine reach a verdict, layer by layer, while testing on their own machine.

The Detection Observatory is a real-time, local-only web page served by the detection engine. You fire a bundled attack profile — or just browse — at your own engine and watch the seven-stage pipeline light up: which signals fired, how the risk score built to its band, and which enforcement rule (if any) overrode it. It turns the terminal-only test run into something you can watch and learn from.

Tip: Want to see what it looks like first? The guided tour is an annotated screenshot walkthrough.

Note: The Observatory runs on the standalone detection engine (bin/server.exe on 127.0.0.1:8443) — not the Gate proxy (bin/gate.exe on :8444/:8445) you build in the Quickstart. It is a separate binary for watching the seven-stage scoring in isolation, and it is not the Ledger. If those two binaries are new to you, read Which piece am I using? first. For how the live feed and safety model work, see Inside the Detection Observatory.

Warning: The Observatory is a development-only, loopback-only surface. It spawns local test processes and streams raw detection telemetry, so it is disabled by default and refuses to start on a non-loopback address. Never enable it on a production or internet-reachable deployment. It is a Core feature, and the published core image never exposes it (HMN_PLAYGROUND is unset there); a Gate build has no Observatory at all.

Note: This validates your own engine on 127.0.0.1. There is no target field — the Red side can only fire the bundled catalog at your local engine. It is not a tool for probing systems you do not operate, and it contains no evasion tuning.

Step 1 — Build the detection engine

From the repository root, build the browser detection bundle and the server:

GOOS=js GOARCH=wasm go build -o web/detector.wasm ./cmd/wasm/
go build -o bin/server.exe ./cmd/server/

Step 2 — Start the engine with the Observatory enabled

The Observatory is gated behind an environment variable and a loopback listen address. Set HMN_PLAYGROUND=1 and bind to 127.0.0.1:

HMN_PLAYGROUND=1 bin/server.exe -addr 127.0.0.1:8443 -web web

Important: With HMN_PLAYGROUND=1, the server refuses to start on a non-loopback address (for example -addr :8443, which binds all interfaces). This is deliberate: the launch endpoint spawns local processes, so the surface must never be remotely reachable. If you see requires a loopback -addr, change -addr to 127.0.0.1:8443 or localhost:8443.

When the flag is unset, none of the /playground routes exist and the engine serves exactly as it does normally — there is zero added surface and zero added cost on the request path.

Step 3 — Open the page

Open the Observatory in a browser:

https://127.0.0.1:8443/playground

Expect a certificate warning — the development certificate is self-signed. Accept it to proceed. The status indicator reads live · SSE connected once the page has attached to the live feed.

Step 4 — Watch your own session

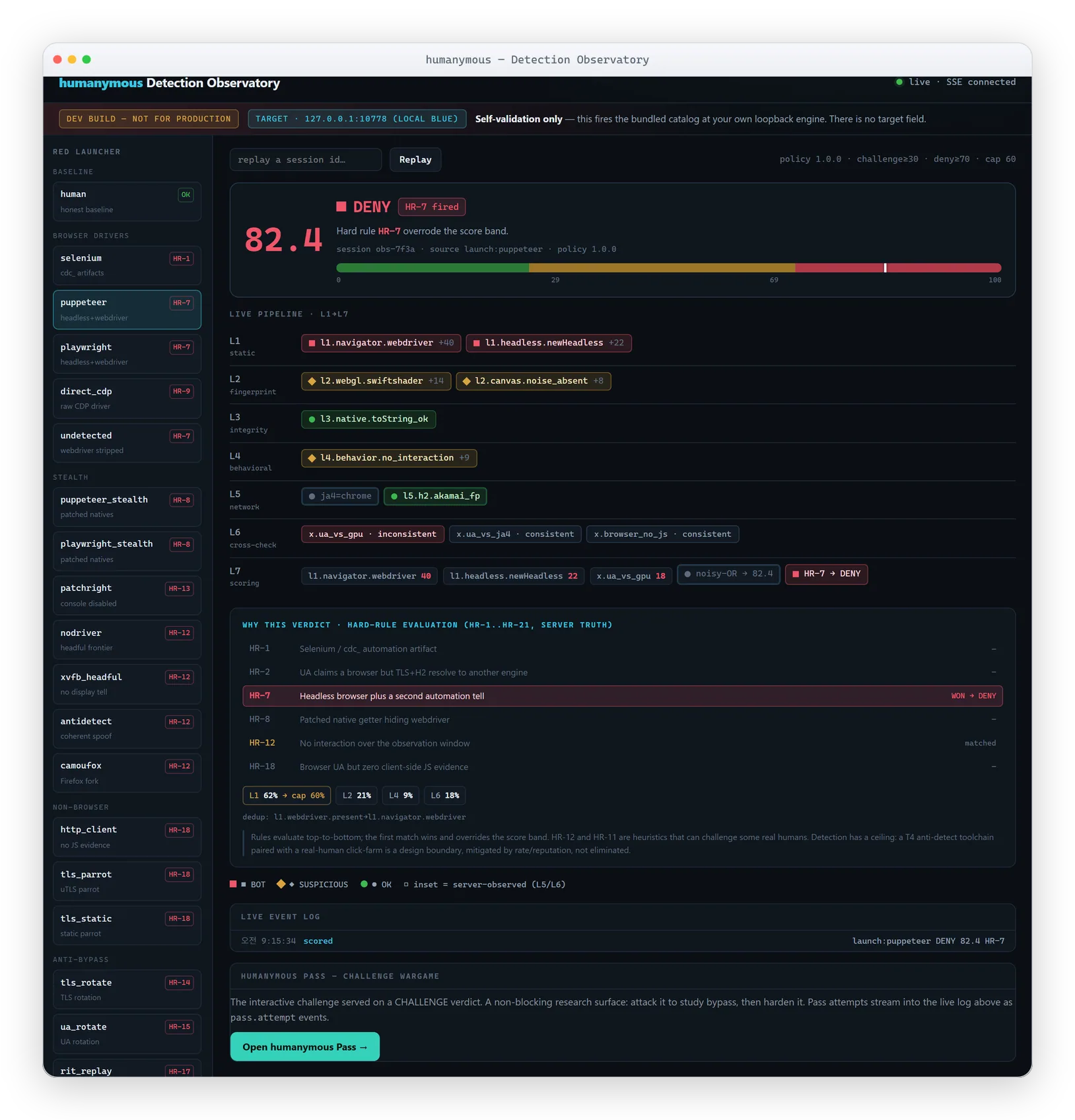

The simplest thing to observe is your own browser. As the page loads it is scored like any other visitor, and the result streams onto the pipeline. You will see:

• The risk gauge and verdict banner — the 0–100 score, the active verdict band, and any enforcement rule that matched.
• The seven-stage waterfall — each firing signal as a chip in its layer lane, colored and shape-coded by its verdict (■ BOT, ◆ SUSPICIOUS, ● OK). Server-observed network signals (network and consistency-check) carry an inset tint.
• The cross-check board (consistency-check stage) — each identity-consistency check as consistent or inconsistent.

Step 5 — Fire a bundled profile at your engine

The Red launcher on the left lists the bundled catalog, grouped (baseline / browser-drivers / stealth / non-browser / anti-bypass / frontier), each card showing its documented tell and the enforcement rule you expect it to trip.

1. Click a profile (for example selenium → hard automation artifact rule, or direct_cdp → browser-control leak plus automation evidence rule).
2. Optionally set runs (1–5).
3. Click Launch (local).

The launcher requests a single-use nonce, then fires exactly that one profile at 127.0.0.1:8443 — the target is fixed in the server; there is no host field. The run drives a real request through the engine, and the scored session streams onto the pipeline. The Abort button cancels an in-flight run.

Note: Browser-driver profiles (selenium, puppeteer, playwright, …) need a local browser (Playwright / Edge) installed. If a profile’s dependency is absent, the run reports a skip reason in the live event log rather than failing silently. The human, http_client, and tls_* profiles run without a browser.

Before each launch the engine’s stateful detectors (rate limiter, cross-session correlation, traffic log) are reset, and launches are serialized — so a flood run cannot poison the baseline of your next run, and a second launch while one is in flight returns “a launch is already in flight.”

The launch is nonce-gated, fixed to the local engine, and streamed back over SSE:

sequenceDiagram
  participant U as "Observatory page"
  participant E as "Detection engine (fixed 127.0.0.1:8443)"
  U->>E: GET /playground/nonce
  E-->>U: single-use nonce
  U->>E: POST /playground/launch {profileId, runs, nonce} — host/url rejected
  E->>E: reset stateful detectors, fire one profile
  E-->>U: SSE /playground/events — session.scored / attack.* / network.abuse
  U->>E: GET /playground/explain/{id} — decision trace
  E-->>U: per-stage decomposition + ordered enforcement-rule evaluation

Step 6 — Read “why this verdict”

Under the pipeline, the Why this verdict panel shows the server’s own decision trace for the current session — not a re-implementation:

• The enforcement-rule ladder — every engine rule (the Core enforcement-rule set) evaluated in first-match precedence order (not numeric order — for example disabled developer console plus automation evidence rule is checked before missing browser evidence rule), with the matched ones highlighted and the winner marked. The winner overrides the score band regardless of the number, and each rule shows a plain-language reason. (the Gate edge-protection set are Gate-plane rules and never appear here.)
• The per-stage decomposition — each stage’s combined probability, and where the per-stage cap clamped a saturated stage (for example, consistency checks at 84% are capped at 60%).
• Dedup drops — where two tells from the same root cause were de-duplicated so they weren’t double-counted.

This is the honest explanation of how the score and verdict were reached.

Step 7 — Network-layer attacks

Some attacks never complete a normal scored request — an HTTP/2 Rapid Reset (rapid_reset) resets its streams by design. These surface on the live event log as a network.abuse event, so the pipeline is not blank for exactly the connection-level attacks. Fire rapid_reset and watch for it.

Endpoints (for scripting)

All routes are loopback-only and exist only when HMN_PLAYGROUND=1.

Example — fire one profile from the shell:

NONCE=$(curl -sk https://127.0.0.1:8443/playground/nonce | grep -o '"nonce":"[^"]*"' | cut -d'"' -f4)
curl -sk -X POST https://127.0.0.1:8443/playground/launch \
  -H "Content-Type: application/json" \
  -d "{\"profileId\":\"http_client.mjs\",\"runs\":1,\"nonce\":\"$NONCE\"}"

What it is — and is not

• It shows you, live, how your own engine decides. The score decomposition and enforcement-rule ladder come straight from the engine’s own scoring, so what you see is what the engine did.
• It does not block all automation, and it is not a production console. Browser-driver profiles depend on a local browser; the coherent browser or human-assisted automation tier (anti-detect toolchains with real-human click-farms) is a design boundary the catalog does not resolve; and datacenter-network browser rule/no interaction observed rule are heuristics that can challenge some real humans. The page labels these honestly.
• It is separate from, and never touches, the authenticated Ledger — it holds no admin tokens or signing keys and serves only public detection output.

Related

• Self-validation: red-team your own deployment — the terminal workflow that runs the whole catalog and reports your block-rate / false-positive rate.
• enforcement rules and verdicts — what each enforcement rule and verdict means.
• Concepts & glossary — the seven-stage pipeline and the risk-score → verdict model the page visualizes.
